Horiba 3200577566, OCMA-550 Oil Content Monitor (prev p/n 30005433)

HOR 3200577566
Calculated at Checkout


Horiba 3200577566, OCMA-550 Oil Content Monitor

OCMA-550 to measure residual oil on components and concentrations of oil adhered on solids such as soil. Measurement can be easily made only by injecting the extracted water sample into the attached cell and setting it to the equipment. This model features a simple design which allows opening/closing of the door to setting of cell with just one hand. This is best for measurement of extracted samples such as evaluation of residual oil on components and measurement of oil contained in food.


  • Any oil with low boiling point can be measured
    With no need for a solvent evaporation process, the OCMA-500 series offers easy operation, and can detect even oils with low boiling points

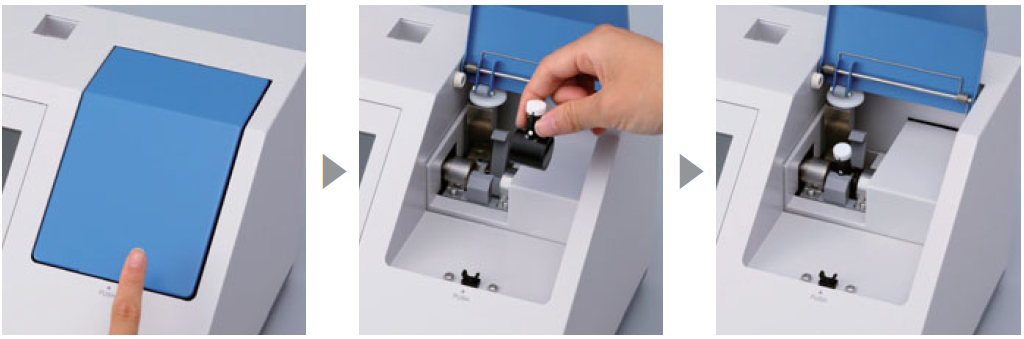

  • Cell is easily detactable with just one hand
    Simple design which allows opening/closing of door and detachment of cell with just one hand. Measurement operation becomes smoother.

  • Timer function
    A timer function to display a measurement value in a certain amount of time is equipped. This saves work and time required for measurement.
  • Color graphic LCD
    The OCMA-500 series comes equipped with a 3.5-in color graphic LCD. Menus and measurement data can be clearly see
  • USB flash memory drive port
    Storing data on USB flash memories enables easy data management on PCs.
  • Unit conversion
    Inputting measurement conditions can change the units displayed (mg/L, mg/kg, mg/g, and mg/PC) as the user needs.
  • Residual oil componenets
    For quality control of components

  • For piping of air conditioners and refrigerator
    To prevent reduction of cooling function

  • Semiconductor field
    For evaluation of degreasing capability

  • Others
    Useful for soil (environmental pollution), food(health hazard) and gas(quality deterioration)


Measurement principle:

Solvent extraction-non-dispersive infrared absorption analysis method

Measurement range:

0mg/L ~ 200mg/L


0 to 99.9 mg/L; 0.1 mg/L
100 to 200 mg/L; 1 mg/L


0 to 9.9 mg/L; ± 0.4 mg/L ± 1 digit
10.0 to 99.9 mg/L; ± 2 mg/L ± 1 digit
100 to 200 mg/L; ± 4 mg/L ± 1 digit
*For standard liquids

Display Method

3.5 inches, 320×240 dots
Backlight Colour graphic LCD

Calibration Method

Select each optionally zero and span calibration

Extraction Solvent

S-316 solvent
※Do not use any other solvent than S-316

Amount of extraction solvent required

Approx. 6.5ml (Amount of extration solvent required)

Extraction Method

Using the extraction solvent and extracted manually outside the product

Ambient Operationg Temperature

0 to 40 ℃ (non condensation)

Power supply

AC 100V to 240V ±10%, 50/60 Hz

Power consumption

AC 100V to 240V : Approx.60VA

External Dimensions

195(H)×253(W)×293(D) mm


Approx. 5 kg

External Output

Output to an USB memory stick


300-item data memory(Measurement history)
Stabilized measurement value display
Self error determination
Clock function
Unit conversion function


*Replaces Model 350 Analyzer
